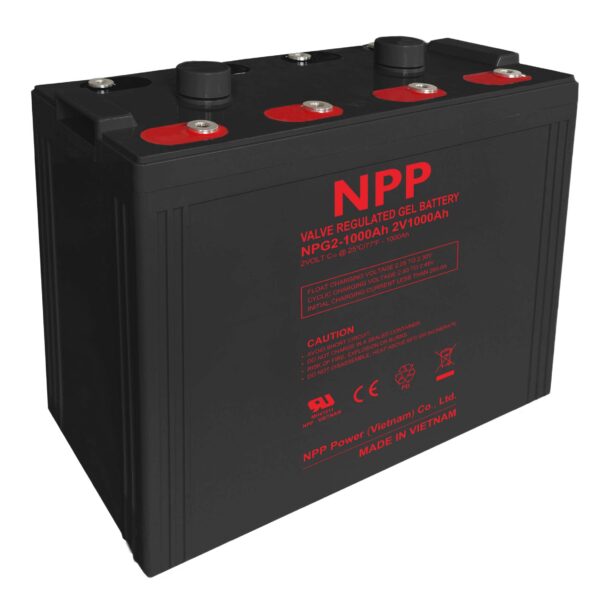

Cung cấp bình ắc quy 2V-400Ah – NP2-1000Ah cho hệ thống DC (một chiều), UPS,.. các nhà máy điện, khu công nghiệp, viễn thông,….
Vui lòng liên hệ với chúng tôi để nhận được báo giá tốt nhất.

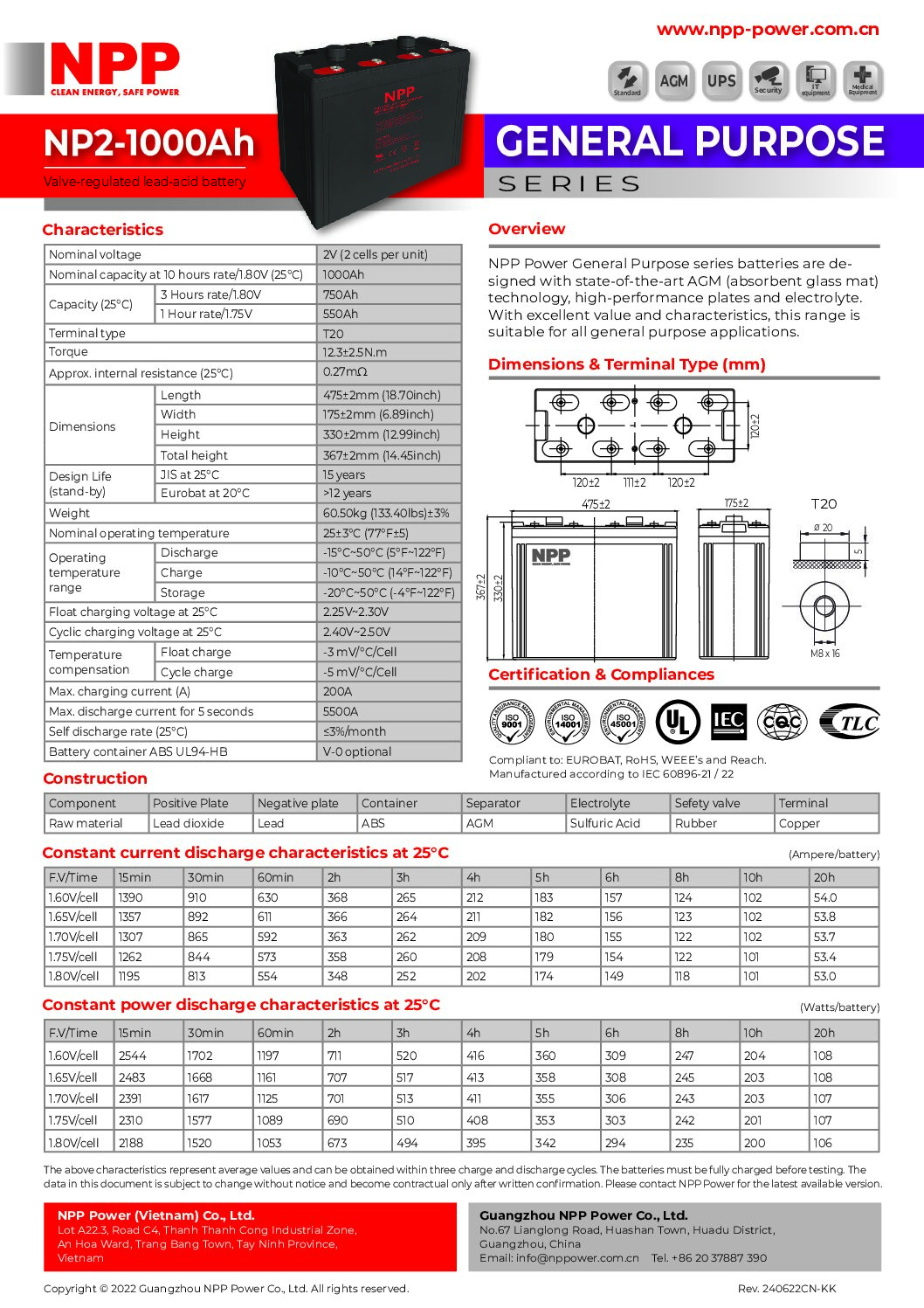

Characteristics
| Item | Specification |
|---|---|
| Nominal voltage | 2V (2 cells per unit) |
| Nominal capacity at 10 hours rate/1.80V (25℃) | 1000Ah |
| Capacity (25℃) | 3 Hours rate/1.80V: 750Ah |
| 1 Hour rate/1.75V: 550Ah | |
| Terminal type | T20 |
| Torque | 12.3±2.5N.m |
| Approx. internal resistance (25℃) | 0.27mΩ |
| Dimensions | Length: 475±2mm (18.70inch) |
| Width: 175±2mm (6.89inch) | |
| Height: 330±2mm (12.99inch) | |
| Total height: 367±2mm (14.45inch) | |
| Design Life (stand-by) | JIS at 25℃: 15 years |
| Eurobat at 20℃: >12 years | |
| Weight | 60.50kg (133.40lbs) ±3% |
| Nominal operating temperature | 25±3℃ (77℉±5) |
| Operating temperature range | Discharge: -15℃~50℃ (5℉~122℉) |
| Charge: -10℃~50℃ (14℉~122℉) | |
| Storage: -20℃~50℃ (-4℉~122℉) | |
| Float charging voltage at 25℃ | 2.25V~2.30V |
| Cyclic charging voltage at 25℃ | 2.40V~2.50V |
| Temperature compensation | Float charge: -3mV/℃/Cell |
| Cycle charge: -5mV/℃/Cell | |
| Max. charging current (A) | 200A |
| Max. discharge current for 5 seconds | 5500A |
| Self discharge rate (25℃) | ≤3%/month |
| Battery container ABS UL94-HB | V-0 optional |
